Custom PCB for DROs using ATTiny85
In this video I show you my custom-made PCB for the DRO that I showed in my previous video.

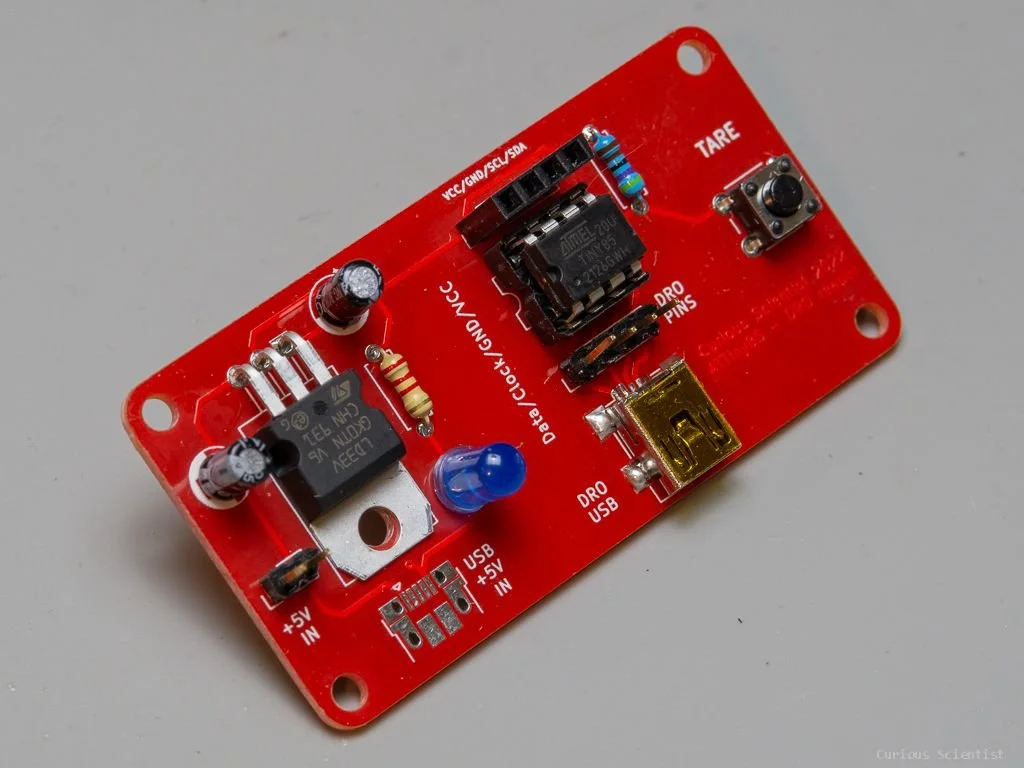

This PCB allows you to replace the original display of the DRO or just use it as a secondary one. It can be useful if you need a larger display, or your original piece was damaged...etc. I added USB ports both for powering the circuit and connecting the DRO, but I also made it possible to directly solder the wires (or terminals) on the board. A tare button is also added to the circuit so you can always reset the readings to zero.
Order my PCB from PCBWay!
If you choose to order the PCB from PCBWay via the affiliate link I provide, you are supporting my work! Click on any of the images to go to PCBWay’s website.
You can buy some of the relevant parts using the affiliate links below:
